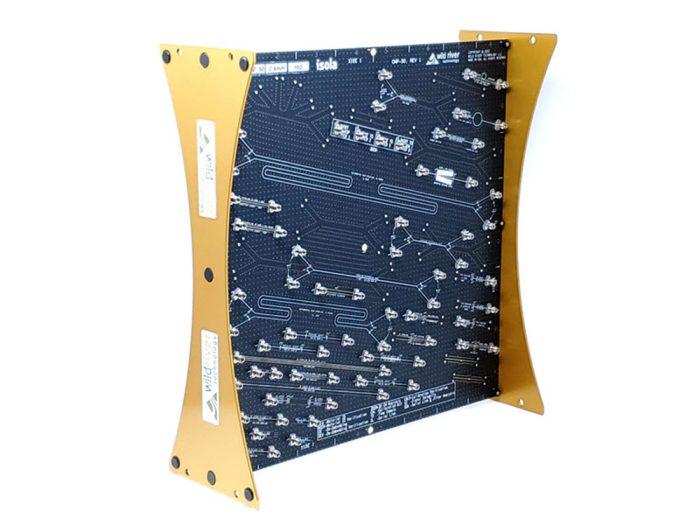

The Wild River Technology CMP-50 Advanced Channel Modeling Platform represents a powerful tool for development of high-speed systems up to 50 GHz. The primary target application for the CMP-50 is 3D-EM solver analysis versus time and frequency domain measurement methodology. It combines 27 structures based on a consistent development of primitive structures useful for performing a host of calibrations including automatic fixture removal, unknown THRU, WinCal XE™ calibration, and VNA gating and time transform analysis.
Features:
- Assembled with 2.92mm (CMP-28) or 2.4mm (CMP-32) connectors

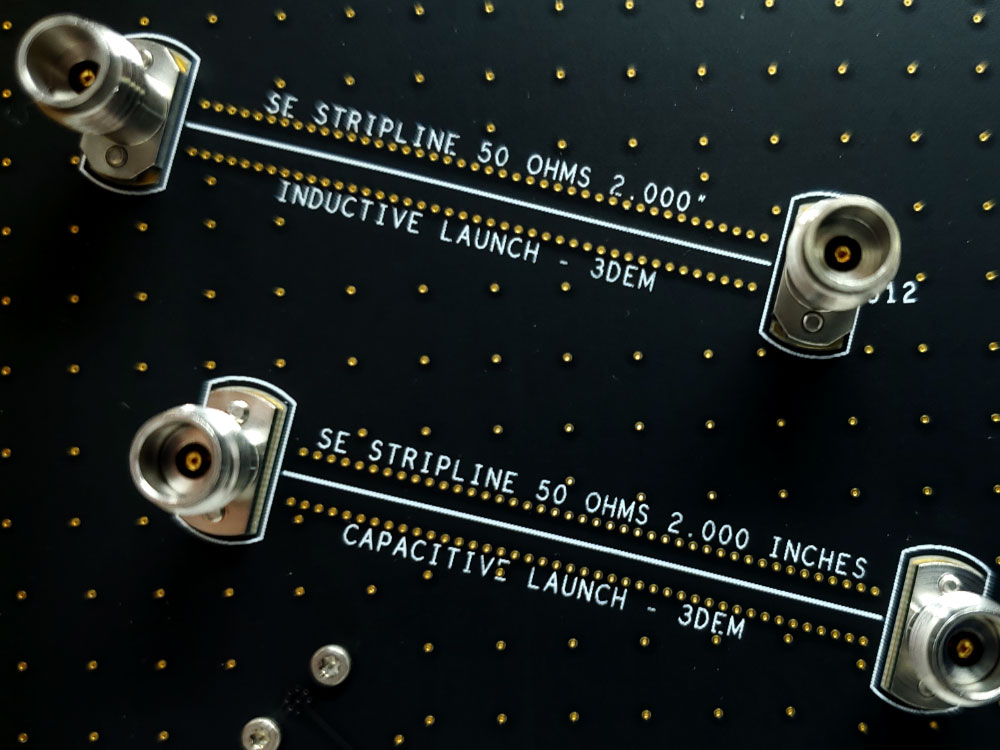

- 3D EM benchmark structures
- Loss structures for material extraction

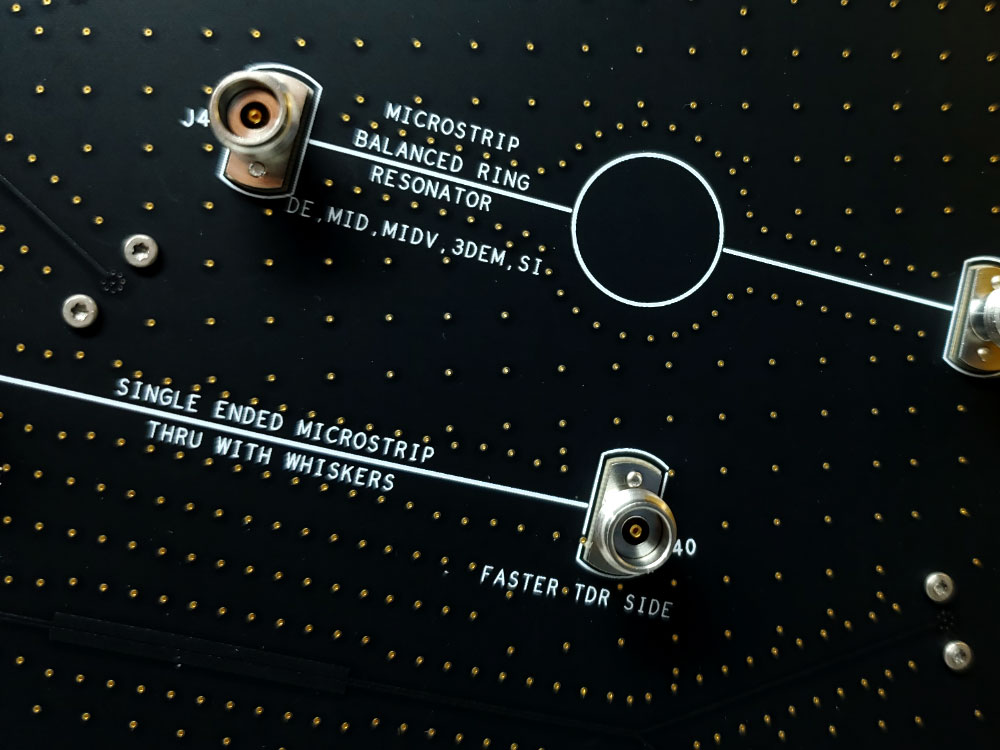

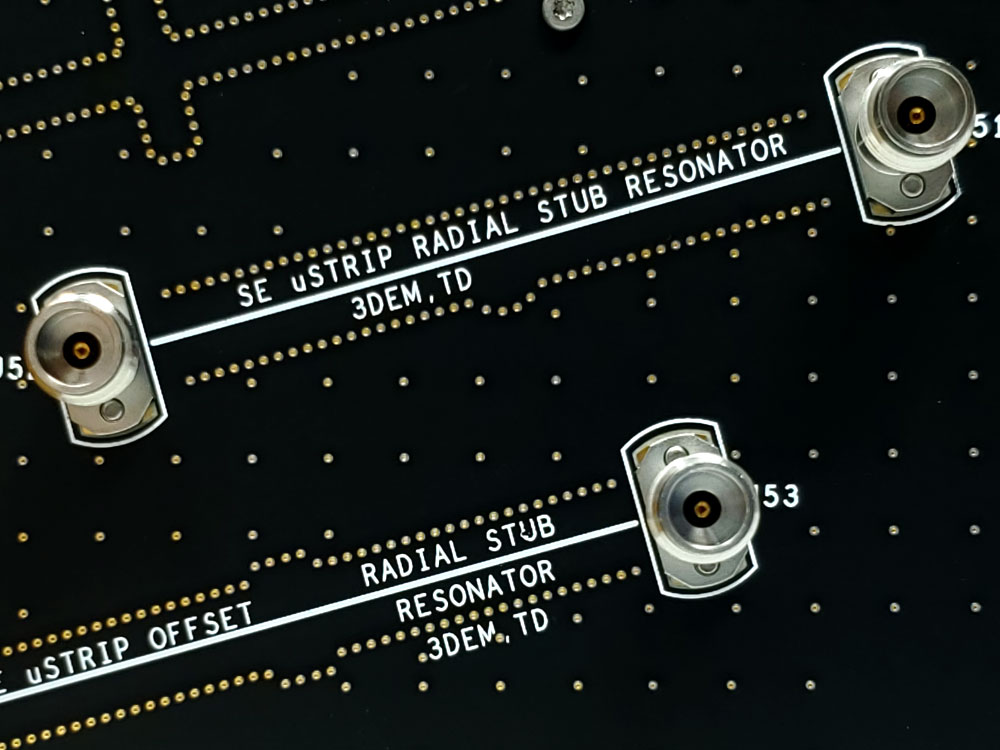

- Resonators for measurement correspondence
- Multi-impedance structures for VNA time transform analysis
- TVNA-VNA analysis structure
- TDR resolvers for ultra-fast TDR (11 psec and 28 psec rise times)
- Allegro layout provided for easy 3D EM import
- Family of via fields
Applications:
- 3D-EM and measurement assistance for the SI practitioner
- Vias
- Multimode analysis
- Meshing analysis structure
- Advanced material extraction and loss modeling
- THRU calibration, T-matrix de-embedding
- Advanced crosstalk analysis
- TRL/LRM calibration verification/benchmark
Connector Types Available: 2.4mm | 1.85mm
