CMP-70 Advanced Channel Modeling Platform Program for High-Speed Systems up to 70 GHz
The CMP-70 Channel Modeling Platform represents a powerful next generation tool for development of high-speed 70 GHz systems. The standard product is also used as a template for a custom modeling solution which utilizes a customer specific stack-up and fabricator. The primary target application for this product is 3D-EM solver analysis modeling versus time and frequency domain measurement methodology. All structures include de-embedding to isolate the device-under-test (DUT) using Symmetrical De-embedding such as Automatic Fixture Removal
(AFR, both 1X and 2X) and GMS approaches used in Simbeor.
Program Contents:

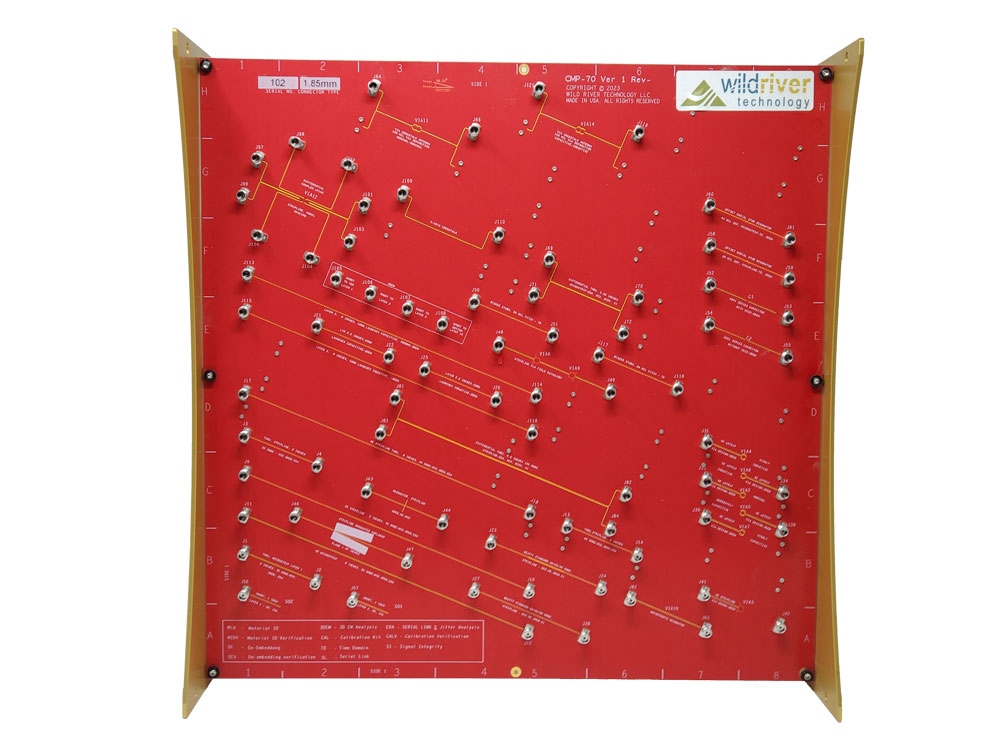

- CMP-70 Platform, assembled and 100% TDR QA tested, with custom stands
- Cross-section PCB strip for your platform, containing as-fabricated geometries
- Measured S-parameters, pre-tested for quality (passivity/causality and resampled for time domain simulations)
- PCB layout design files (NDA required)
- EDA Library including Loss Models, including Industry First accurate surface roughness models
- Comprehensive training for 3D EM analysis – correspondence, material ID in X-Y and Z axis in HFSS
Applications:Connector Types Available: 2.4mm | 1.85mm | Download Datasheet >
For custom solutions based on customer stack-up refer to CMP-70X
Key High-Level Deliverables
- This product is a comprehensive program, not just a hardware test vehicle
- Achieve Extreme Signal Integrity
- Designed for customers dealing with 400, 800G Ethernet
- Dramatic simulation set-up, material models and correspondence to measurement is achieved
Product Features
- Helps our customers achieve 70GHz breakthrough signal integrity metrics
- Allegro layout (.brd or OBD++) available for easy 3D EM import (NDA required)
- Measured S-parameters included

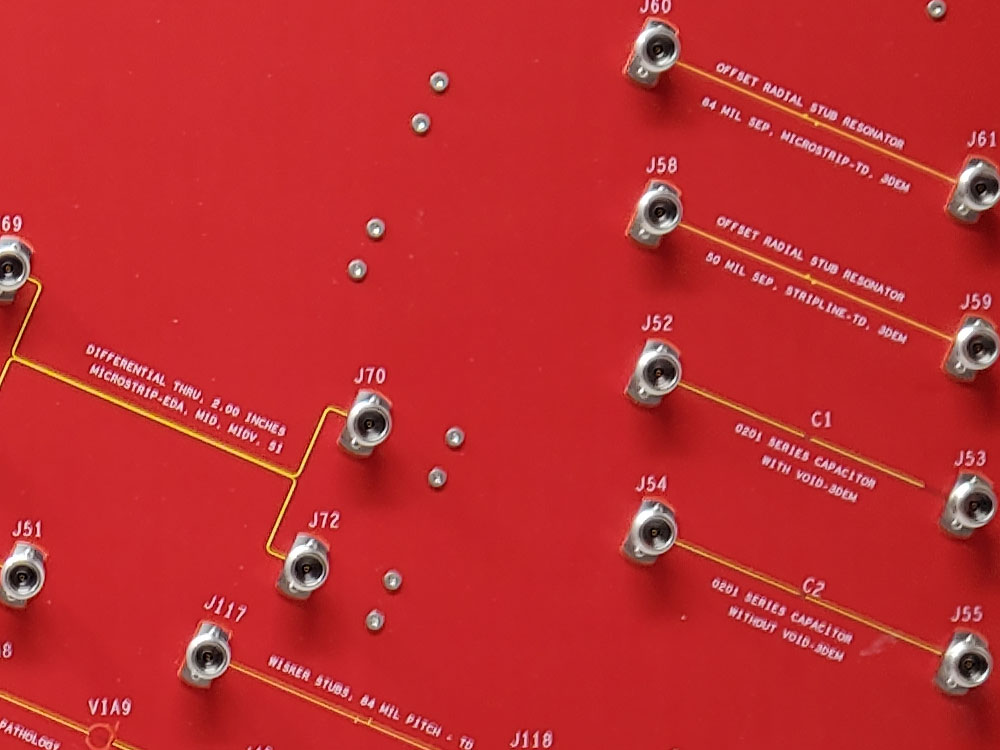

- Resonators for measurement correspondence
- Multi-impedance structures for VNA time transform analysis
- HFSS Model libraries of starter kit included
- HFSS set-up, and material ID (X-Y and Z-axis, Tensor-based) web-based training
Product Applications:
- Establish 70 GHz High-Confidence Design
- Learn how to design 1st spin designs to 70 GHz and achieve IEEE P370 TG1 signal integrity rated quality
- Benchmark simulations, test meshing, port boundaries, solver approach

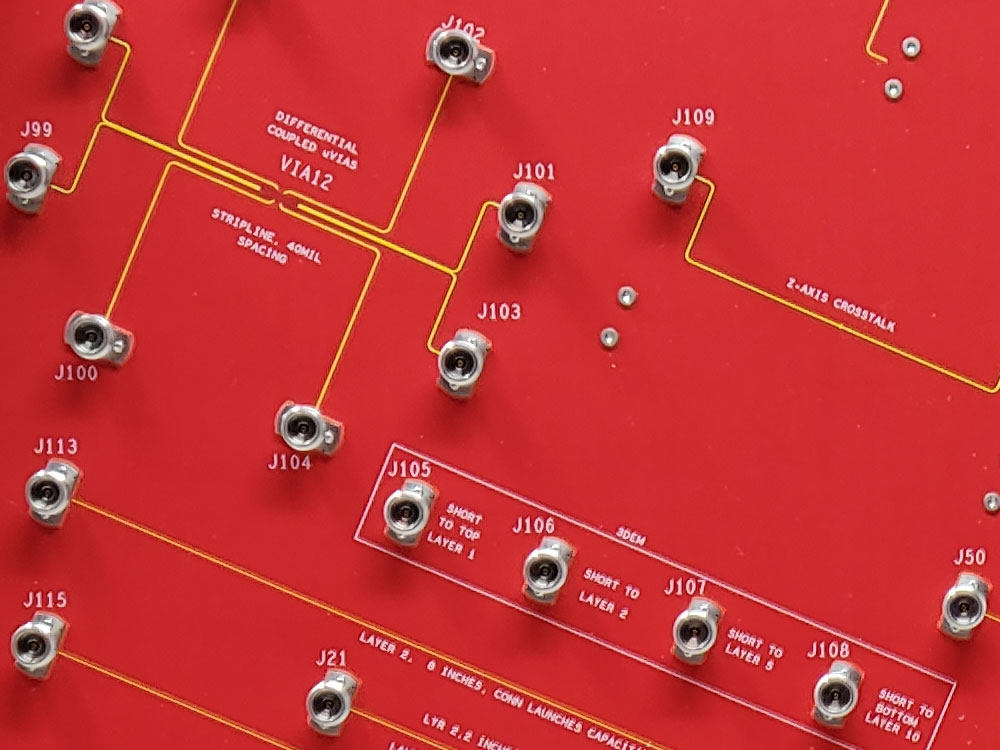

- Improve signal integrity methodology of common structures (voids, vias, breakouts, cavities, etc.)
- De-embedding validation and measurement validation
- VNA, TDNA measurement validation to 70 GHz, 8 psec. resolution
The price for the CMP-70 is expected to be around $20K with 1.85mm connectors installed.
For this price you get:
- Fully assembled system, 100% NIST traceable TDR tested, report included
- S-parameter library, measured, tested for quality, includes DC point
- Web-based product training with WRT Applications Engineer, scheduled at customers convenience
Ordering Instructions:
| Part Number | Model | Description |
|---|---|---|
| 920-0001-00 | CMP-70-1.85mm | Advanced Channel Modeling Platform assembled with 1.85mm VLF connectors |
| 920-0002-00 | CMP-70-1.35mm | Advanced Channel Modeling Platform assembled with 1.35mm VLF connectors |
Accessories:
| Part Number | Model | Description |
|---|---|---|
| 906-0003-00 | Cable Bundle | Four cable pair bundle, black 1206 flexible coaxial cable assemblies with 1.85mm compatible male connectors on both ends. Specification: 16dB return loss or better through 65GHz, 1ps or less skew matched cable pairs. Lengths: 2 x 42″, 1 x 36″, 1 x 24″ |
| 907-0016-00 | Case | Pelican case with custom cut foam for 16 sq in WRT platforms |
