ISI-56 – 56G ISI Loss Modeling Platform
10-56 Gbpsec Advanced SERDES Intersymbol Interference Loss Platform
An industry-first crosstalk testing platform consisting of a family of loss and insertion-crosstalk ratio (ICR) designed to challenge 6-32 Gbpsec systems and PAM-4, 56 Gbpsec.
The ISI-56 represents the newest generation of Wild River Technology platforms with controlled amounts of intersymbol interference (ISI) for creating jitter to 56 Gbpsec. ISI-56 is the first loss modeling platform to meet the stringent requirements of the IEEE P370 specification, which addresses items such as recommended design of signal integrity test fixtures and methods and processes for ensuring the accuracy and consistency of measured data for signals with frequency content to 50 GHz. This test fixture meets the highest IEEE P370 Class A signal integrity requirements.
True ISI is created by loss generated with pure dielectric and conductor losses only, with very low return loss. Group delay variation, an important loss consideration for data rates exceeding 32 Gbpsec, has been minimized with special layout techniques, pristine connector launch designs, and the use of controlled-weave laminate systems from Isola. The dynamic range of 65dB matches modern SerDes sensitivity performance.
- Open to closed eye in minutes
- Combine with XTLK- 32 Platform for Loss-Crosstalk testing
- Pre-Layout, Pre-Silicon EDA Capable
Connector Types Available: 2.92mm | 2.4mm | 1.85mm | Download Datasheet >
Features:
- Loss from –5dB to −40dB at for 10 and 56 Gbpsec
- Keysight ADS Kit available for DFE, CTLE, IBIS-AMI, NRZ and PAM-4
- Causal/Passive high quality S-parameters option available
- Superb signal integrity
- Low loss, spread weave material used – no group delay noise
- Pristine VLF launch design
- Optional matched low skew cables available
Applications:
- SERDES Receiver Tolerance Testing
- Communication Channel Optimization using DFE, FFE, CTLE, and Gain Stage Elements
- Jitter Analysis and Benchmarking
- Related Products — XTALK-56
- Optional matched low skew cables available
LOSS CURVES, CLEAN DOWN TO 60DB: WILD RIVER TECHNOLOGY ISI-56 INTERSYMBOL INTERFERENCE LOSS MODELING PLATFORM

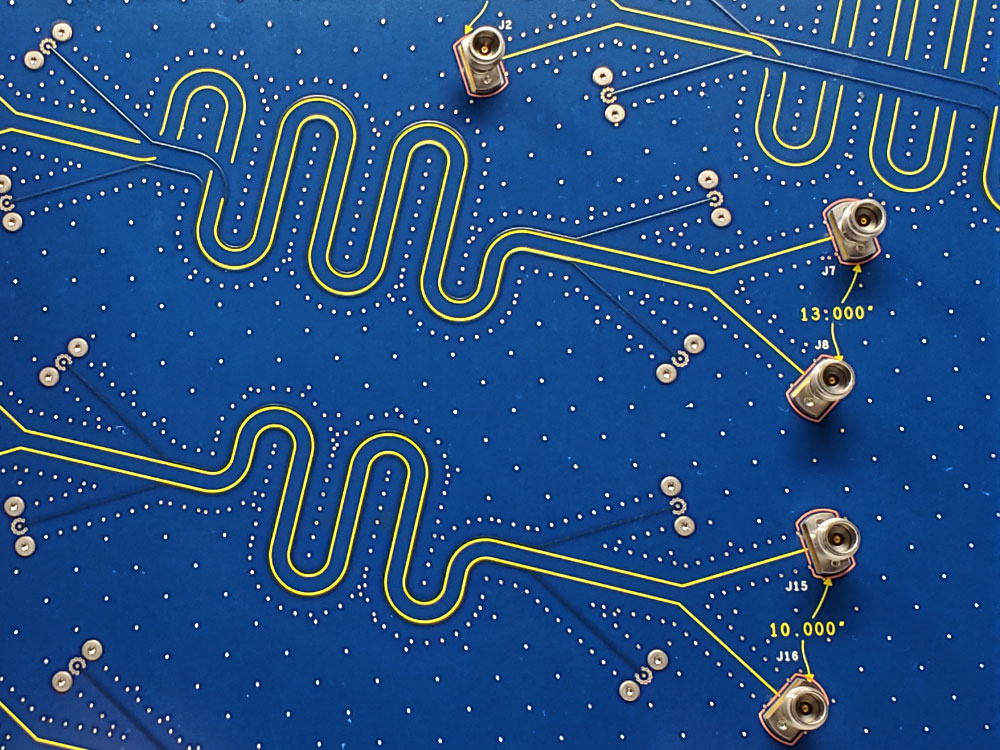

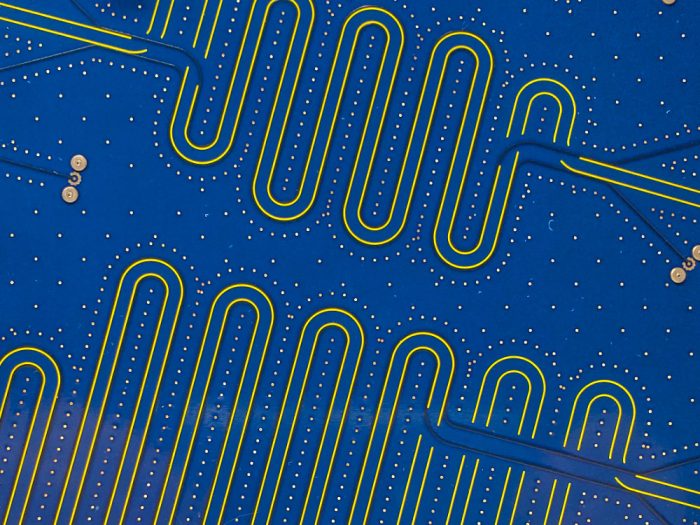

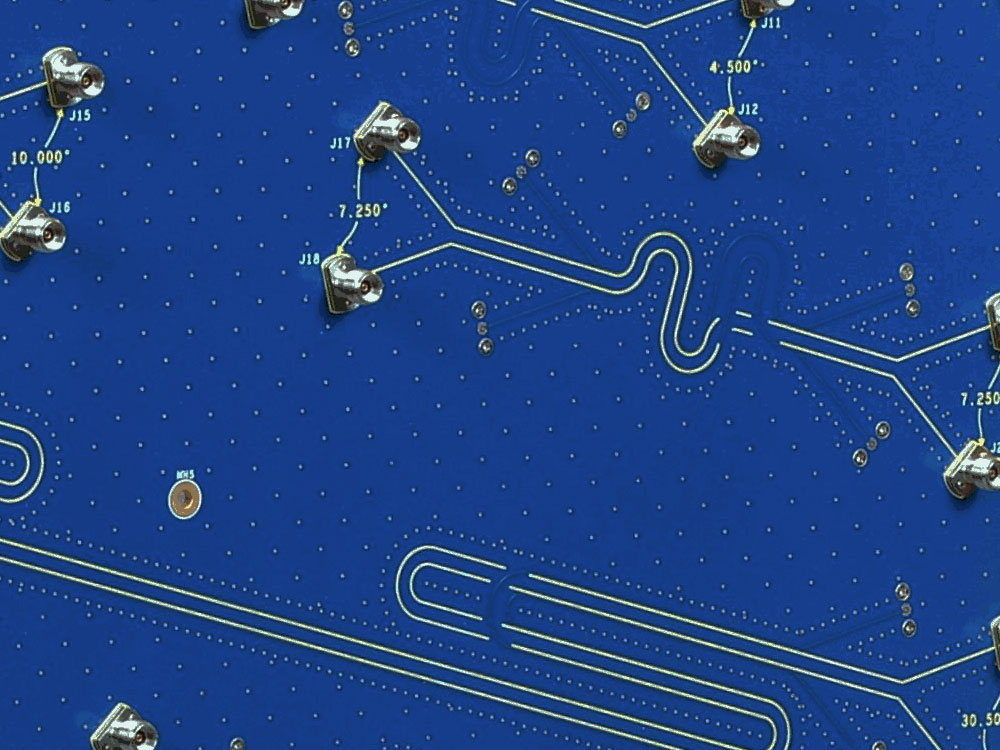

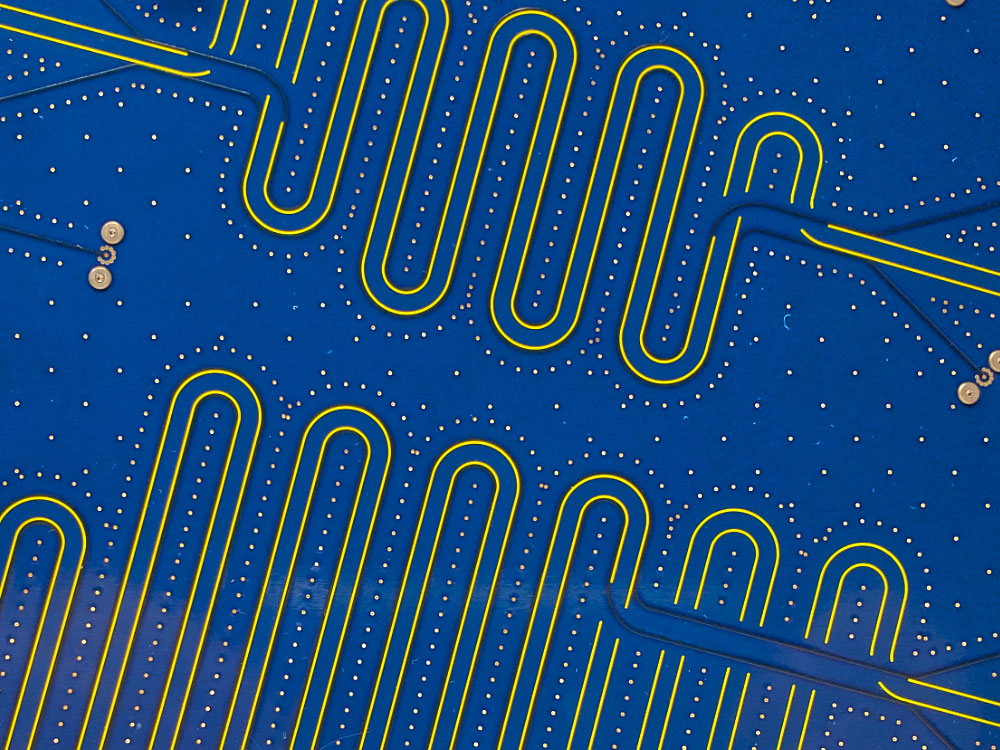

The Wild River Technology ISI platform is composed of nine microstrip and nine stripline differential pairs of various lengths.

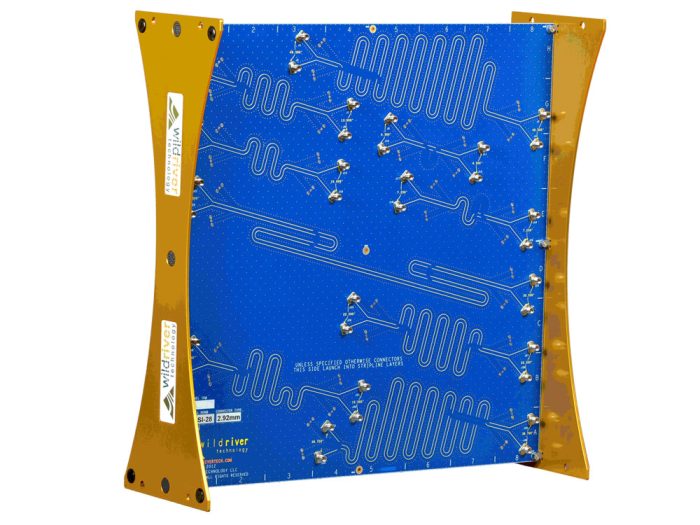

The ISI–56 (1.85mm connectors) platform kit includes the assembled and tested platform, custom stands, and User Guide. The stands provide measurement access on any orientation.
