ISI-USB4 – ISI Loss Modeling Platform Set for USB4 RX and DisplayPort 2.0 Sink
The ISI-USB4 Loss Modeling Set is a 10-56 Gbpsec advanced SERDES InterSymbol interference loss platform designed for DisplayPort 2.0 Sink and USB4 Rx Channel Calibration.
You may also like…
Description
The ISI-USB4 represents the next generation of Wild River Technology platforms with controlled amounts of ISI for creating jitter to 56 Gbpsec NRZ and 112 Gbpsec PAM-3 and PAM-4. True Intersymbol Interference (ISI) is created by loss generated with dielectric and skin effect only. Group delay variation, an important loss consideration for data rates exceeding 25 Gbpsec, has been minimized with special layout techniques, pristine connector launches, and the use of controlled weave dielectric material.

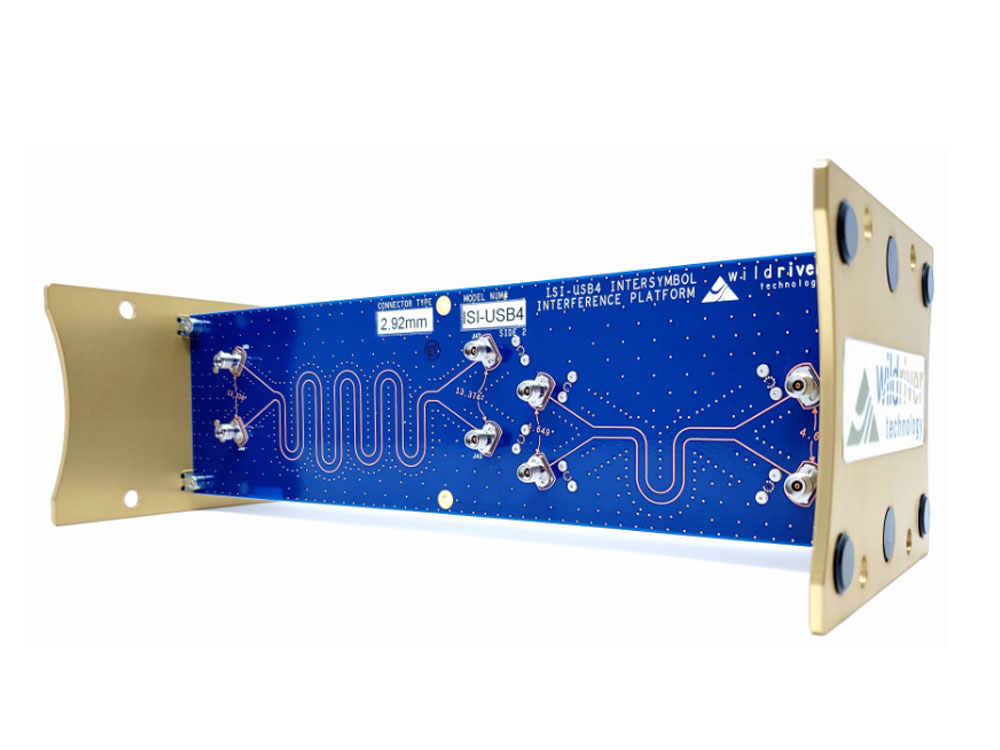

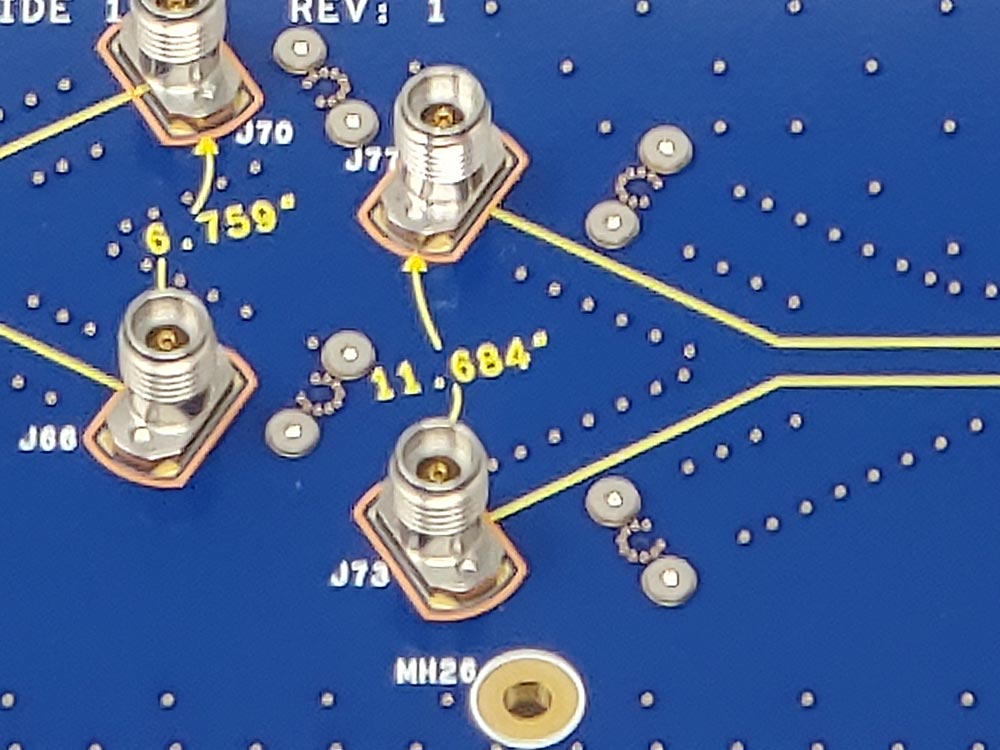

The ISI-USB4 Loss Modeling Kit is composed of 24 stripline differential pairs of various lengths. Ground vias surrounding each structure preserve jitter spectral purity by suppressing unwanted resonance. More information: sales@wildrivertech.com
The ISI-USB4 has the following features:
- Designed for DisplayPort 2.0 Sink and USB4 Rx Channel Calibration
ISI-USB4 Test Fixture & Cable Kit Includes:

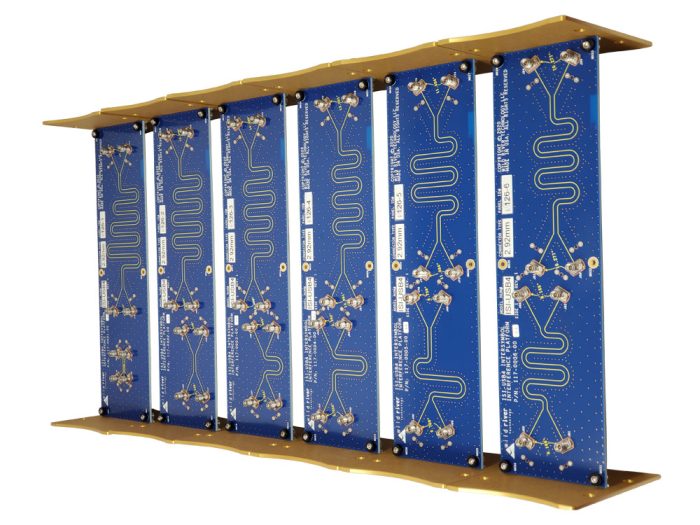

- 6 PLATFORMS CONTAINING 24 LOW LOSS TO HIGH LOSS STRUCTURES
- *IL = Varied 2-10 dB @ 5GHz and @10GHz
- Very low return-loss -30dB at 10GHz
- IEEE P370 Tier 1 Signal Integrity rated
Applications:
- SERDES Receiver Tolerance Testing
- Communication Channel Optimization using DFE, FFE, CTLE, and Gain Stage Elements
- Jitter Analysis and Benchmarking
- Related Products — XTALK-56 (coming Spring 2020)
Additional information
| Size | Small, Medium, Large |
|---|
