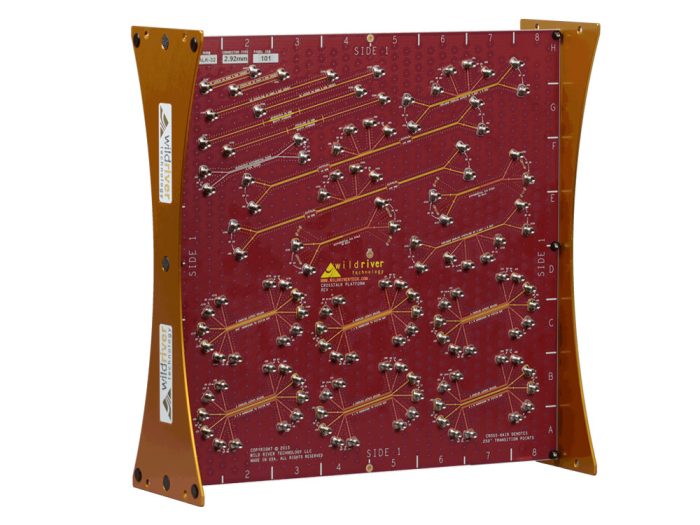

XTALK-32 – Crosstalk Channel Modeling Platform, 6-56 Gbpsec
An industry-first crosstalk testing platform consisting of a family of loss and insertion-crosstalk ratio (ICR) designed to challenge 6-32 Gbpsec systems and PAM-4, 56 Gbpsec.

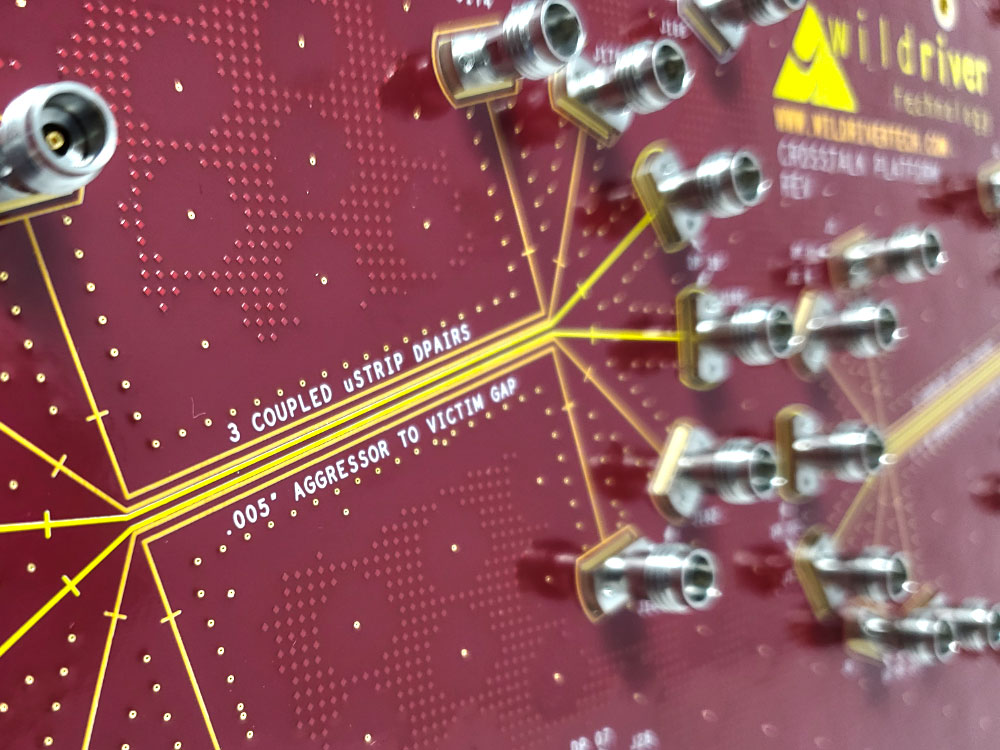

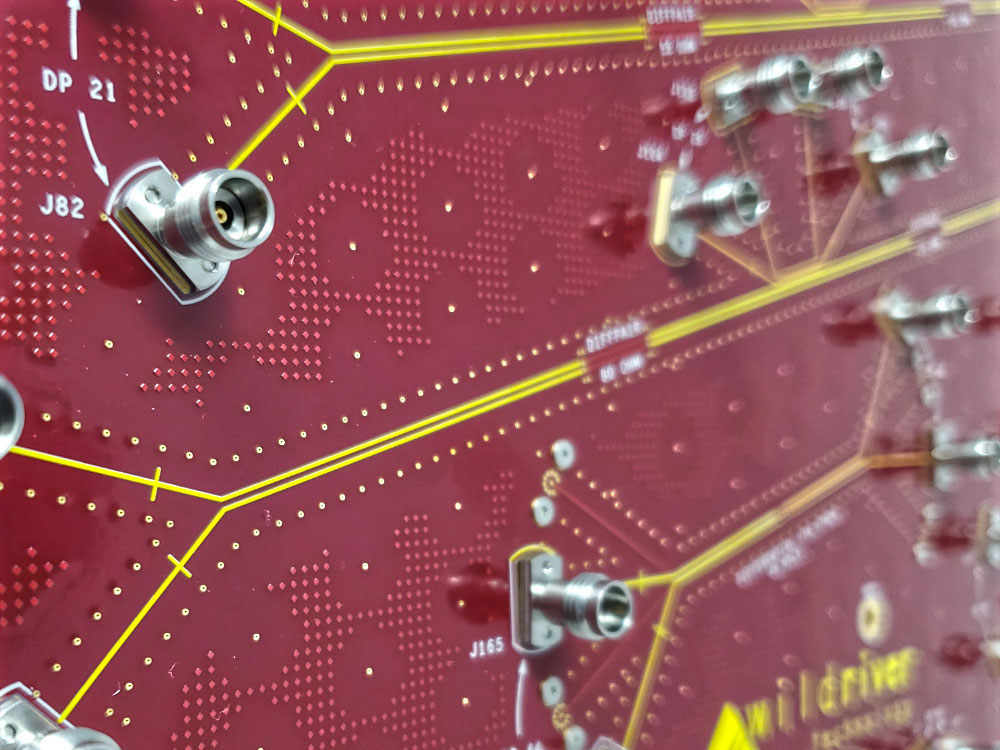

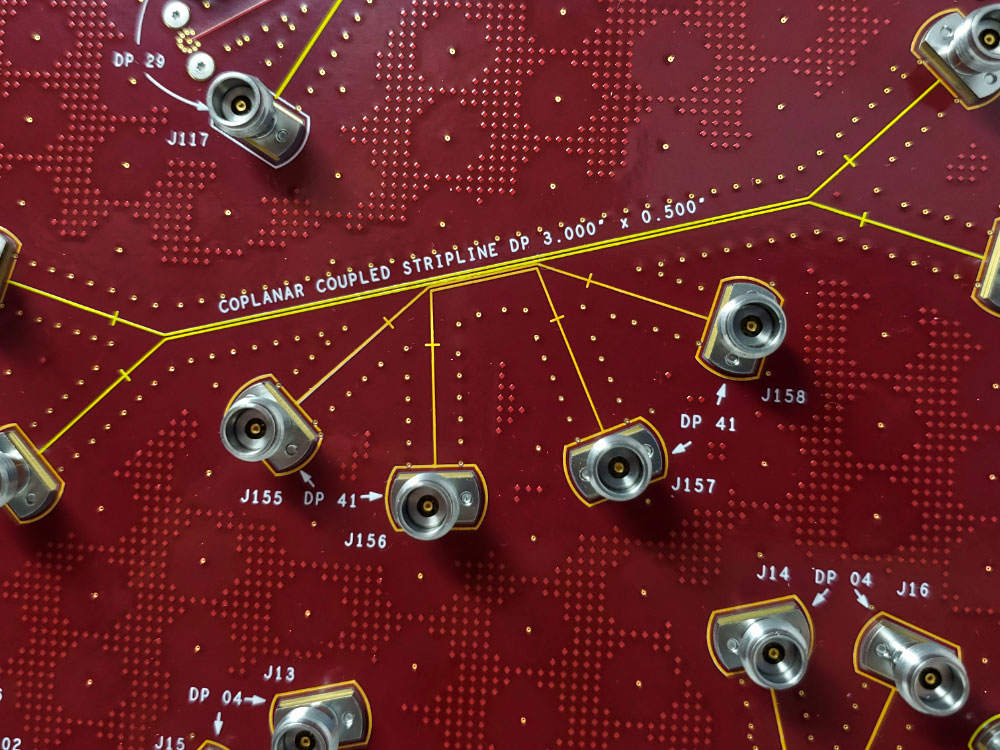

This is an industry-first crosstalk testing platform consisting of a family of loss and insertion-crosstalk ratio (ICR) designed to challenge 6-32 Gbpsec systems and PAM-4, 56 Gbpsec. ICR is a basic measure of signal versus crosstalk energy (similar to signal/noise) and provides 50 (very low crosstalk) to 15 (very high crosstalk) for both 10 Gbpsec and 28 Gbpsec systems. Crosstalk energy and victim loss can further be tuned with optional pad kit. Structures can be combined with other platforms or on-board structures using optional low-skew <1 psec matched cable kit.
Fully Test SERDES | Dial in Channel Optimization Strategies | Meaningful IBIS AMI Simulations
Connector Types Available: 2.92mm | 2.4mm | 1.85mm | Download Datasheet >
Features:
- Industry-first Crosstalk Channel Modeling Package for creating real crosstalk — not synthesized!
- Includes a family of ICR models for common compliance specifications:
- IEEE 802.3 | CEI | CEI | USB 3.0 | 10GBase-KR | SAS3 | PCI Express Gen3 | 40GbE | 100GbE | 16XFC
- Keysight ADS EDA Kit available
- S-parameter library for pre-silicon analysis
- Clean, pure crosstalk with no signal integrity structure set included
- Crosstalk configurations with -5 dB and -10 dB return loss to mimic problematic backplane channels
- Optional WRT skew-matched cable pairs for use with ISI-28/32 to
- Works with ISI-28 Loss platform and WRT skew matched cables
Applications:
- SERDES Receiver Tolerance Testing
- IBIS AMI and Serial Link analysis
- Communication Channel Optimization using DFE, FFE, CTLE, and Gain Stage Elements
- Jitter Analysis and Benchmarking
The XTALK-32 is an industry first product consisting of a family of loss and Insertion-Crosstalk Ratio (ICR) designed to challenge 6-32 Gbpsec
systems and PAM-4 56Gbpsec. ICR is a basic measure of signal versus crosstalk energy (similar to Signal/Noise) and provides 50 (very low
XTALK) to 15 (very high XTALK) for both 10 and 28 Gbpsec systems. Crosstalk energy and Victim loss can further be tuned with optional pad
kit. Structures can be combined with other platforms or on-board structures using optional low skew <1 psec matched cable kit.
The XTALK-32 package Includes:
- Assembled and 100% tested Platform
- EDA Design Kit for ADS including DFE, CTLE, Pre-emphasis using IBIS AMI and reference TX/RX
- S-parameter Library test for quality
Crosstalk at 28Gbspec, PRBS11, Synchronous Aggressor, NoMode Conversion, 12 Port DIFF Pair
