ISI-224 Advanced Loss Modeling Platform Set

This platform set is specifically designed for the demanding signal integrity requirements for 224 Gbaud PAM-4. True (ISI) is created by loss generated with dielectric, skin effect and metal conductor losses only.

Add to Quote
Categories: ,
ISI-224 Advanced InterSymbol Interference Platform

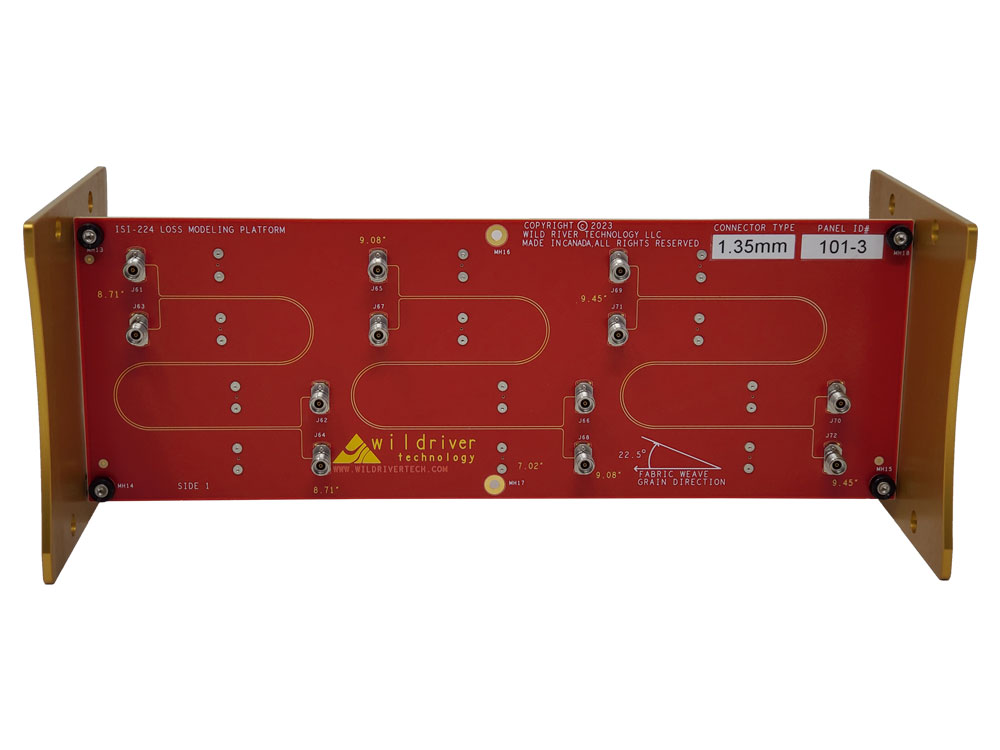

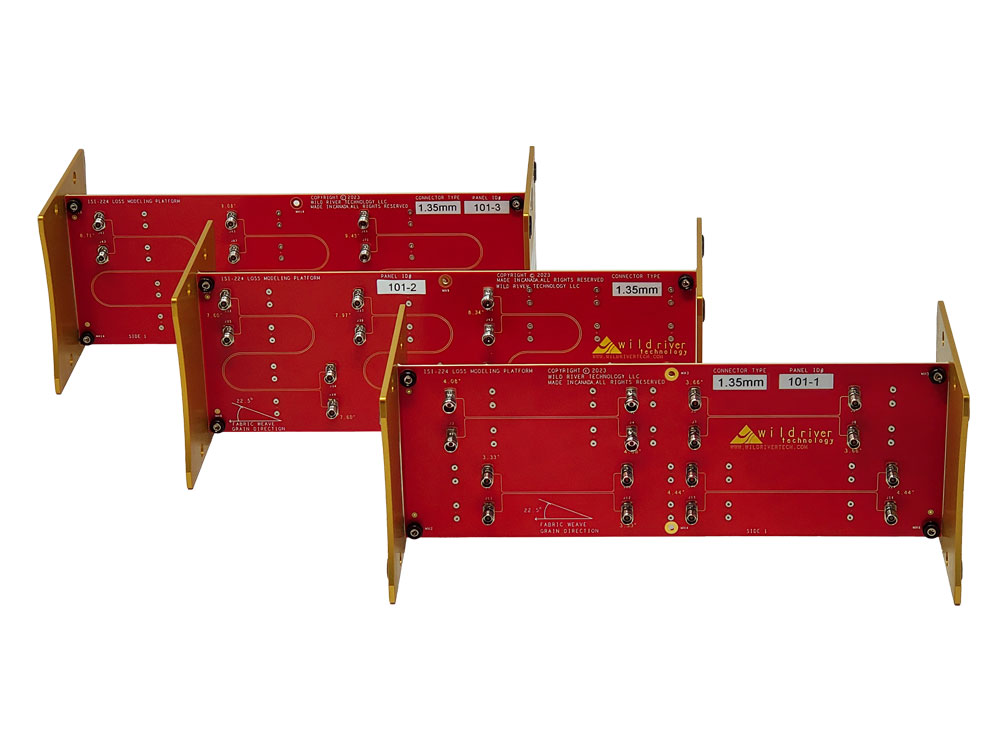

1 of 3 boards of the ISI-224 Advanced Loss Modeling Platform Set, a signal integrity test fixture developed by Wild River Technology.

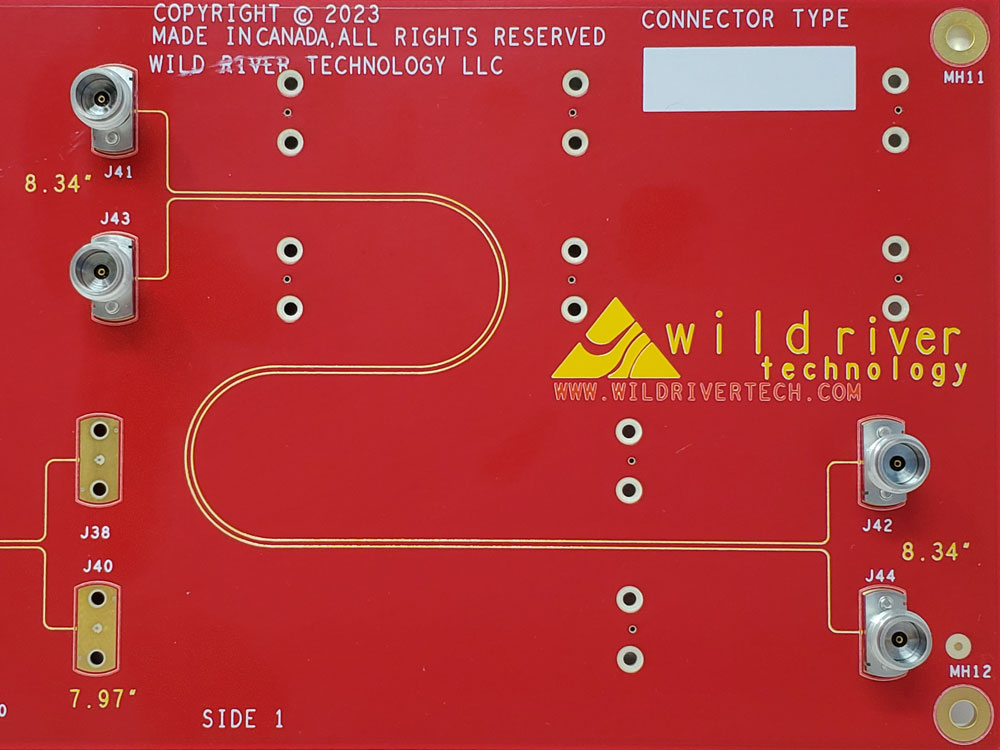

Close-up of the ISI-224 Advanced Loss Modeling Platform Set, a signal integrity test fixture developed by Wild River Technology.

Description

The ISI-224 inter-symbol interference (ISI) platform set specifically designed for the demanding signal integrity requirements for 224 Gbaud PAM-4. True ISI is created by loss generated with dielectric, skin effect and metal conductor losses only. Deliverables include pristine connector launches, and unimpeachable material/loss models. More information: sales@wildrivertech.com

Features:

  • Suited for 224G PAM4 characterization and compliance testing
  • Very good return-loss out to 90GHz
  • Selectable losses from –8dB to −28dB at 56 GHz Nyquist
  • Causal and Passive high-quality S-parameters included
  • Very clean loss out to 90 GHz

Datasheet

Additional information

Size

Small, Medium, Large
